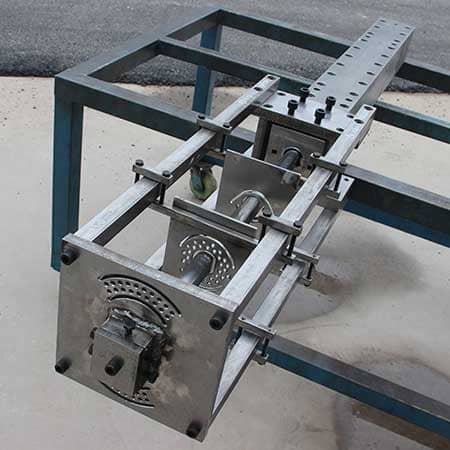

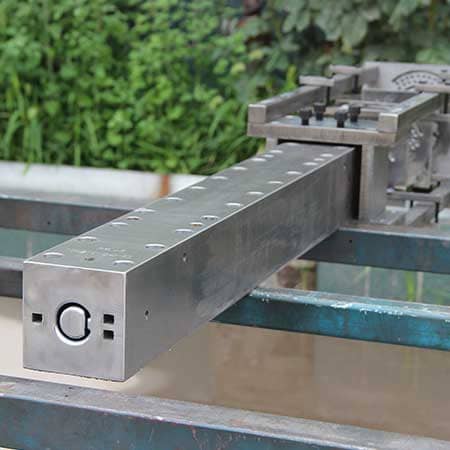

φ35mm FRP Concave Tube Pultrusion Die: Specialized Tooling for Custom Profiles
Upgrade your production line with this φ35mm FRP concave tube pultrusion die, designed for intricate geometries using Cr12 steel and a mirror-finish chrome-plated cavity — well suited to premium architectural and industrial uses.
Executive standard
Straightness: 0.02mm Smoothness: Ra=0.025~0.012 Cavity surface hardness: < 0.02mm Boundary tolerances: ±0.3mm Plating thickness: 0.04-0.05mm Provide Customized Services
Precision Engineering for Intricate FRP Profiles
As architectural and industrial design continue to evolve in 2026, plain round tubes can’t always meet aesthetic or functional needs. The φ35mm FRP Concave Tube Pultrusion Mould is built to produce specialized “concave” or “fluted” profiles for premium sunshades, high-end furniture, and specialized electrical insulators. At Guangdong Haikuo, we recognize that concave sections bring distinct resin-flow and fiber-distribution challenges, so our moulds are designed with optimized internal thermodynamics to keep every flute sharp, structurally sound, and seamless.
1. How Concave Pultrusion Works
A φ35mm concave tube demands a higher degree of die-cavity precision than a standard circular profile, since the “indentations” in the shape can create resin-rich zones or fiber voids if not controlled:
- Flow Dynamics: The mould’s entry zone is CNC-machined to feed the rovings and mats smoothly into the concave recesses without snagging or uneven tension.
- Differential Cooling/Heating: Because wall thickness varies between the concave peaks and valleys, our moulds place heating cartridges strategically to keep the cure rate consistent across the whole cross-section.
- Mandrel Alignment: The internal mandrel is precisely keyed to the outer die to stop it from rotating or drifting, holding wall thickness steady at 2mm to 4mm per client specification.
2. Tooling Materials & Surface Finish
Glass fibers dragging continuously through the concave corners generate constant friction, which is why we rely on ultra-hard tool steels:
- Cr12 / Cr12MoV: A high-chrome steel that delivers the abrasion resistance needed for production runs spanning thousands of meters.
- H13 Tool Steel: Suggested for high-speed pultrusion with polyurethane or vinyl ester resins, where thermal stability matters most.
- Super-Mirror Polishing: Polishing the concave recesses to Ra 0.012 gives an “optical grade” finish that keeps resin from building up in the flute corners — buildup that would otherwise cause surface defects and raise pulling force.
3. φ35mm Concave Mould Technical Parameters
| Technical Specification | Standard Value | Engineering Advantage |
|---|---|---|
| Profile Diameter | φ35.0 mm | Optimized for architectural aesthetics. |
| Cavity Material | Cr12 / H13 / P20 | Exceptional wear & heat resistance. |
| Surface Smoothness | Ra 0.025 ~ 0.012 | Class-A decorative finish. |
| Hardness | HRC 55 – 60 | Immune to glass fiber scratching. |
| Chrome Thickness | 0.04 – 0.06 mm | Industrial-grade low-friction layer. |
| Straightness | 0.02 mm / m | Ensures perfect alignment in assemblies. |
4. Application-Specific Engineering
- UV-Resistant Output: For outdoor architectural louvers, our moulds are designed to work perfectly with UV-stabilized polyester resins and surface veils.
- Reinforcement Balance: The mould cavity geometry is optimized to accommodate a higher volume of continuous filament mat (CFM) near the concave flutes for enhanced hoop strength.
- Rapid Pulling: The mirror-finish chrome plating allows for higher pulling speeds (up to 1.2m/min), increasing the daily output of your pultrusion line.
10 Technical FAQs: Concave Tube Moulding
Q1: “Can the concave flute depth be customized?”
A: Yes. We can design the mould to produce subtle fluting for aesthetics or deep grooves for mechanical interlocking.
Q2: “Does the chrome plating cover the deep concave corners?”
A: Our specialized electroplating process ensures a uniform hard-chrome layer even in tight radii, preventing corner wear.
Q3: “Which resin is best for decorative φ35mm concave tubes?”
A: Isophthalic Polyester is standard for decoration, but Vinyl Ester is recommended if the tube is used in corrosive chemical environments.
Q4: “Will the concave shape cause the tube to twist during pultrusion?”
A: No. We engineer the internal fiber alignment and pre-former guides to balance the internal stresses, ensuring the tube exits perfectly straight.
Q5: “How long does it take to manufacture a φ35mm concave die?”
A: A high-precision异型 (special-shaped) mould typically requires 18-25 days for CNC machining, vacuum heat treatment, and mirror polishing.
Q6: “Is it difficult to clean the concave sections of the mould?”
A: Not with our mirror finish. Most residue is easily removed while the mould is warm. We also provide matching cleaning scrapers for specific fluted shapes.
Q7: “Can I use the same mould for both Carbon Fiber and Fiberglass?”
A: While possible, Carbon Fiber is more abrasive. For Carbon Fiber, we recommend Cr12 steel with a higher HRC rating for maximum lifespan.
Q8: “What is the typical lifespan of the mould?”
A: With proper maintenance, our Cr12 moulds can produce over 100,000 meters of profile before requiring a surface refresh.
Q9: “Can you provide a trial run of the profile before shipping the mould?”
A: Yes, we offer in-house testing services where we pultrude sample profiles using your specified resin and fiber mix for final approval.
Q10: “How do you prevent air bubbles from getting trapped in the concave grooves?”
A: The mould entry features a specifically calculated ‘tapered compression zone’ that forces air out through the resin bath before the material cures.
Precision Tooling Consultation
Enhance your product line with Guangdong Haikuo Composite Materials Co., Ltd. Led by Helena Wang, our engineering department specializes in the design and fabrication of complex FRP Concave Tube Pultrusion Moulds.
Partner with us for your next project:
- Lead Engineering Consultant: Helena Wang
- Technical Engineering Email: helena@frphk.co
- Global WhatsApp: +86 189 5198 8522
Tooling Specifications & Engineering Insights
| Die Steel Grade Material | H13 Tool Steel (Premium) | Cr12MoV Die Steel (Standard) | P20 Mold Steel (Economical) |
|---|---|---|---|
| Core Working Lifespan | Excellent (Over 50,000+ meters with fiberglass) | High (Around 30,000 – 40,000 meters) | Moderate (Best for short-run prototyping) |
| Thermal Fatigue Resistance | Ultra-High (Maintains HRC hardness at high temperature) | Moderate (Good for polyester matrices) | Poor (Prone to dimensional wear under continuous PU) |
| Internal Mirror Polish Cap | Perfect (Achieves Ra 0.012 μm easily) | Excellent (Achieves Ra 0.025 μm) | Standard (Achieves Ra 0.040 μm) |
| Best Application Profiles | concave tube runs requiring maximum tool life and dimensional stability | Standard-volume concave tube production | Low-volume prototyping or trial runs of concave tube |
Precision Mold Engineering Q&A
Q1: Why is a 0.04-0.05mm hard chrome plating thickness critical for φ35mm FRP Concave Tube Pultrusion Mould: Precision Tooling for Specialized Profiles?
Answer: Glass fiber rovings and mats are highly abrasive. During continuous pultrusion, the reinforced matrix creates significant scratching friction against the cavity walls of φ35mm FRP Concave Tube Pultrusion Mould: Precision Tooling for Specialized Profiles. A precise 0.04-0.05mm hard chrome layer raises surface micro-hardness and protects the underlying tool steel, extending die lifespan by over 40% while maintaining consistent φ35mm concave tube geometry run after run.
Q2: How does internal mirror polishing to Ra 0.012-0.025 μm affect pull force on φ35mm FRP Concave Tube Pultrusion Mould: Precision Tooling for Specialized Profiles?
Answer: A mirror-polished cavity dramatically reduces the dynamic coefficient of friction inside the concave tube shaping channel. Lower friction means the pultrusion machine needs less clamping/traction force to advance the curing composite, which cuts down on line stiction, prevents surface fiber blooming, and reduces energy consumption over long production runs.
Q3: Which steel grade should be specified for high-volume production with φ35mm FRP Concave Tube Pultrusion Mould: Precision Tooling for Specialized Profiles?
Answer: For high-volume, continuous manufacturing, H13 tool steel or Cr12MoV die steel is recommended. H13 delivers the longest working lifespan and best thermal fatigue resistance, while Cr12MoV offers strong performance at a lower cost for standard-volume runs — P20 mold steel remains a cost-effective option for prototyping or short trial batches.
Q4: Can φ35mm FRP Concave Tube Pultrusion Mould: Precision Tooling for Specialized Profiles be customized to non-standard dimensions or OEM specifications?
Answer: Yes. As with all our pultrusion tooling, dimensions, cavity count, and surface treatment can be engineered to your exact drawing or sample — our in-house CNC mold fabrication team supports both standard catalog sizes and fully custom OEM tooling requests.
Q5: Which resin systems is φ35mm FRP Concave Tube Pultrusion Mould: Precision Tooling for Specialized Profiles compatible with?
Answer: The die is compatible with the full range of resin systems used in FRP pultrusion, including unsaturated polyester, vinyl ester, epoxy, and phenolic resins. Let us know your target resin and cure profile and we can confirm the optimal cavity finish and heating zone setup.
Production Process
Engineer mould design
Profile mould debugging
Rough embryo leveling
Mold CNC machining
Mould punching
Surface grinding
Cavity inner wall polishing
Mold chrome
