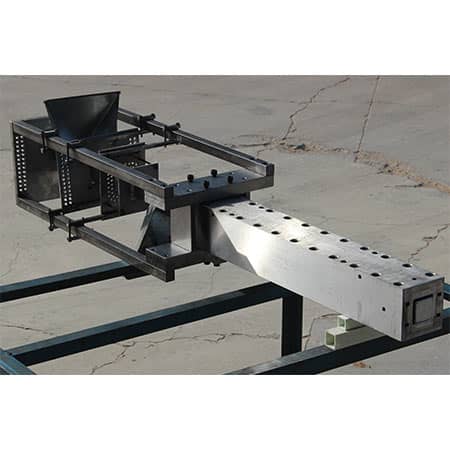

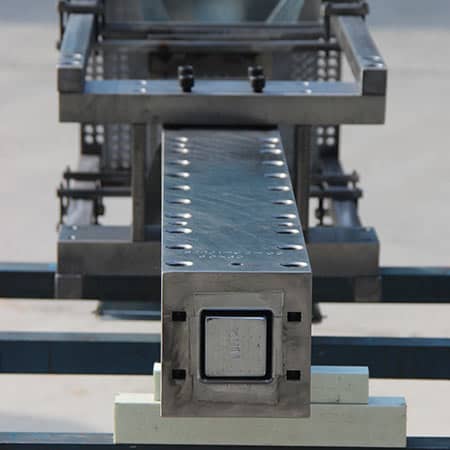

60*60mm FRP Square Tube Pultrusion Die: High-Precision Tooling for Structural Profiles
Achieve consistent structural FRP output with this high-precision 60*60mm square tube pultrusion die, built from Cr12/H13 steel with a mirror-finish cavity and HRC 60 hardness for excellent wear resistance and dimensional stability.
Executive standard
Straightness: 0.02mm Smoothness: Ra=0.025~0.012 Cavity surface hardness: < 0.02mm Boundary tolerances: ±0.3mm Plating thickness: 0.04-0.05mm Provide Customized Services
Precision Tooling Built for Structural FRP Sections
Across construction and industrial projects in 2026, 60*60mm square tubes serve as a structural “workhorse,” commonly found in cooling towers, modular housing, and pedestrian walkways. Our 60*60mm FRP Square Tube Pultrusion Mould is built to withstand the demanding requirements of these load-bearing uses. At Guangdong Haikuo, close attention to the internal corner geometry and the thermal behavior of the die steel keeps every square tube within ISO structural tolerances and free of delamination.
1. How Square Tube Pultrusion Works
Making a high-quality 60mm square tube means controlling the “shrinkage stress” that tends to build up at the corners of a rectangular profile. Our moulds address this through three critical zones:
- Compaction Entry: A precision-calculated lead-in taper at the mold mouth compacts the glass fiber mats and rovings so the corners of the square profile are fully reinforced.
- Zonal Heating Dynamics: A multi-stage heating system compensates for the fact that the center of a 60mm square tube cures at a different rate than its corners, preventing “internal checking,” or thermal cracking.
- Mandrel Precision: A 50mm-54mm internal mandrel (sized to wall thickness) is held in place with high-tensile bolts and centering jigs so wall thickness stays uniform to within ±0.1mm.
2. Material Selection & Cavity Surface Treatment
Continuous glass fiber movement at high pulling speeds is highly abrasive, so our 60*60mm moulds are built from premium tool steels:
- Cr12 / Cr12MoV: A high-chrome steel used as the standard for volume production, reaching HRC 58-62 after vacuum heat treatment.
- H13 Tool Steel: Favored for epoxy-based pultrusion thanks to its toughness and resistance to thermal fatigue.
- Mirror Polishing & Plating: The cavity is polished to Ra 0.012 and given a 0.05mm hard chrome coating, an ultra-smooth combination that cuts pulling friction by 30% and reduces both energy use and gripper wear.
3. Technical Parameters & Execution Standards
| Engineering Property | Haikuo Standard Value | Benefit to Production |
|---|---|---|
| Mold Specification | 60.0 x 60.0 mm | Customizable wall thickness (3mm-6mm). |
| Cavity Hardness | HRC 55 – 62 | Extreme resistance to glass fiber erosion. |
| Straightness Tolerance | < 0.02 mm / meter | Ensures tubes fit perfectly in connectors. |
| Smoothness (Ra) | 0.025 ~ 0.012 | Class-A surface finish for exterior use. |
| Corner Radius (R) | 1.0 – 3.0 mm (Custom) | Reduces stress concentration at joints. |
4. Industrial Applications for 60mm Square Tubes
- Cooling Towers: Corrosion-proof framework members that withstand constant chemical and moisture exposure.
- Electrical Utilities: Non-conductive support structures for high-voltage substations.
- Modular Construction: Lightweight beams and columns for rapid-deployment housing and disaster relief shelters.
- Agricultural Frames: Durable, rot-proof framing for greenhouse structures and livestock flooring supports.
10 Professional FAQs: Square Tube Mould Engineering
Q1: “Can one mould produce square tubes with different wall thicknesses?”
A: No. The wall thickness is determined by the gap between the outer cavity and the internal mandrel. However, mandrels are interchangeable if the die body is designed for it.
Q2: “What is the typical pulling speed for a 60*60mm profile?”
A: Depending on the resin system (Polyester vs. Polyurethane), speeds typically range from 0.4 to 1.0 meters per minute.
Q3: “How do you prevent the square tube from twisting?”
A: Twisting is prevented by precise alignment of the pre-forming templates and the internal straightness of the mould cavity (0.02mm tolerance).
Q4: “Is hard chrome plating required for pultruding carbon fiber?”
A: Absolutely. Carbon fiber is highly abrasive. We recommend a thicker chrome layer or specialized nitriding for carbon fiber runs.
Q5: “How many zones of heating are recommended for a 60mm die?”
A: We recommend a 3-zone or 4-zone heating system to manage the curing peak effectively for structural thicknesses.
Q6: “What causes surface ‘fuzz’ or roughness on the square tube?”
A: This usually results from mould fouling or worn-out chrome plating. Our Ra 0.012 finish is designed to prevent this for up to 100,000 meters.
Q7: “Can you design the mould with a specific corner radius for my connectors?”
A: Yes. We can customize the ‘R’ angle to match your structural joint requirements perfectly.
Q8: “What is the expected lifespan of a Cr12 60*60mm mould?”
A: With proper maintenance and non-abrasive resins, a Cr12 die can produce between 50,000 and 150,000 meters of profile.
Q9: “Do you provide technical support for the first production run?”
A: Yes, we provide full technical documentation and can offer video consultation for machine setup and resin temperature settings.
Q10: “How do I clean resin build-up inside the square cavity?”
A: Use a brass or copper scraper while the mould is still warm to avoid scratching the chrome plating, followed by a cleaning solvent.
Strategic Tooling Consultation
Elevate your production efficiency with Guangdong Haikuo Composite Materials Co., Ltd. Led by Helena Wang, our team provides world-class FRP Pultrusion Mould solutions for global infrastructure.
Discuss your project specifications with us:
- Project Director: Helena Wang
- Technical Engineering Email: helena@frphk.co
- Global WhatsApp: +86 189 5198 8522
Tooling Specifications & Engineering Insights
| Die Steel Grade Material | H13 Tool Steel (Premium) | Cr12MoV Die Steel (Standard) | P20 Mold Steel (Economical) |
|---|---|---|---|
| Core Working Lifespan | Excellent (Over 50,000+ meters with fiberglass) | High (Around 30,000 – 40,000 meters) | Moderate (Best for short-run prototyping) |
| Thermal Fatigue Resistance | Ultra-High (Maintains HRC hardness at high temperature) | Moderate (Good for polyester matrices) | Poor (Prone to dimensional wear under continuous PU) |
| Internal Mirror Polish Cap | Perfect (Achieves Ra 0.012 μm easily) | Excellent (Achieves Ra 0.025 μm) | Standard (Achieves Ra 0.040 μm) |
| Best Application Profiles | square tube runs requiring maximum tool life and dimensional stability | Standard-volume square tube production | Low-volume prototyping or trial runs of square tube |
Precision Mold Engineering Q&A
Q1: Why is a 0.04-0.05mm hard chrome plating thickness critical for 60*60mm FRP Square Tube Pultrusion Mould: Precision Tooling for Structural Profiles?
Answer: Glass fiber rovings and mats are highly abrasive. During continuous pultrusion, the reinforced matrix creates significant scratching friction against the cavity walls of 60*60mm FRP Square Tube Pultrusion Mould: Precision Tooling for Structural Profiles. A precise 0.04-0.05mm hard chrome layer raises surface micro-hardness and protects the underlying tool steel, extending die lifespan by over 40% while maintaining consistent 60*60mm square tube geometry run after run.
Q2: How does internal mirror polishing to Ra 0.012-0.025 μm affect pull force on 60*60mm FRP Square Tube Pultrusion Mould: Precision Tooling for Structural Profiles?
Answer: A mirror-polished cavity dramatically reduces the dynamic coefficient of friction inside the square tube shaping channel. Lower friction means the pultrusion machine needs less clamping/traction force to advance the curing composite, which cuts down on line stiction, prevents surface fiber blooming, and reduces energy consumption over long production runs.
Q3: Which steel grade should be specified for high-volume production with 60*60mm FRP Square Tube Pultrusion Mould: Precision Tooling for Structural Profiles?
Answer: For high-volume, continuous manufacturing, H13 tool steel or Cr12MoV die steel is recommended. H13 delivers the longest working lifespan and best thermal fatigue resistance, while Cr12MoV offers strong performance at a lower cost for standard-volume runs — P20 mold steel remains a cost-effective option for prototyping or short trial batches.
Q4: Can 60*60mm FRP Square Tube Pultrusion Mould: Precision Tooling for Structural Profiles be customized to non-standard dimensions or OEM specifications?
Answer: Yes. As with all our pultrusion tooling, dimensions, cavity count, and surface treatment can be engineered to your exact drawing or sample — our in-house CNC mold fabrication team supports both standard catalog sizes and fully custom OEM tooling requests.
Q5: Which resin systems is 60*60mm FRP Square Tube Pultrusion Mould: Precision Tooling for Structural Profiles compatible with?
Answer: The die is compatible with the full range of resin systems used in FRP pultrusion, including unsaturated polyester, vinyl ester, epoxy, and phenolic resins. Let us know your target resin and cure profile and we can confirm the optimal cavity finish and heating zone setup.
Production Process
Engineer mould design
Profile mould debugging
Rough embryo leveling
Mold CNC machining
Mould punching
Surface grinding
Cavity inner wall polishing
Mold chrome
