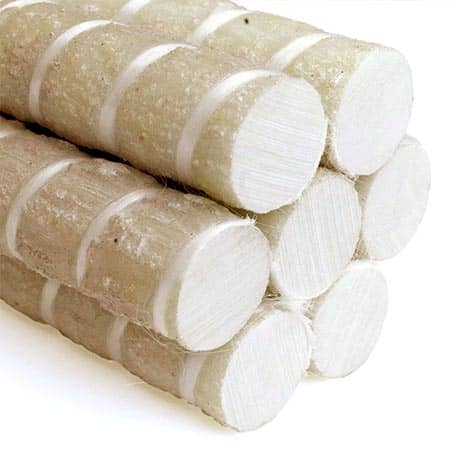

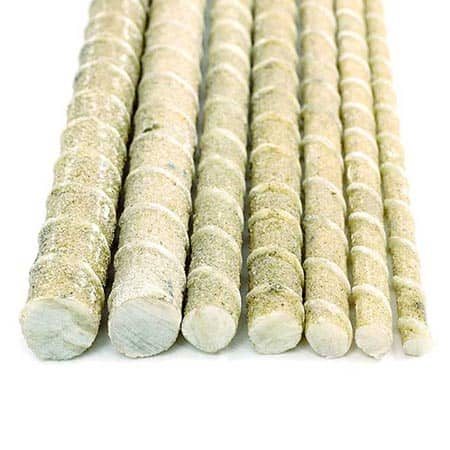

Fiberglass reinforced polymer rebar
Fiberglass reinforced polymer (FRP) rebar is a composite material made of a polymer matrix reinforced with glass fibers. It is a more durable, proven and successful reinforcing alternative to steel rebar in concrete applications. FRP rebar has many advant
Customized service:
Diameter Color Length
Winding method Surface Sandblasting Punch hole
DescribeSolutionsFAQContact us
Fiberglass Reinforced Polymer Rebar: A Stronger, Lighter and More Durable Concrete Reinforcement
Fiberglass reinforced polymer (FRP) rebar is a composite material made of a polymer matrix reinforced with glass fibers. It is a more durable, proven and successful reinforcing alternative to steel rebar in concrete applications. FRP rebar has many advantages over steel rebar, such as:
Higher tensile strength: FRP rebar can withstand up to 2 times the tensile stress of steel rebar of the same diameter.
Lighter weight: FRP rebar is up to 7 times lighter than steel rebar in concrete flatwork applications and 4 times lighter than steel rebar of the same diameter. This reduces the transportation, handling and labor costs and improves the productivity and safety of the construction site.
Corrosion resistance: FRP rebar will never rust, unlike steel rebar, which can corrode and deteriorate over time due to exposure to moisture, chemicals, salt, etc. This enables more durable and longer-lasting concrete structures that require less maintenance and repair.
Non-conductivity: FRP rebar is electrically and thermally non-conductive, which eliminates the risk of electrocution or fire hazards in electrical or magnetic environments. It also reduces the thermal expansion and contraction of concrete, which can cause cracking and spalling.
Applications of FRP Rebar
FRP rebar can be used in various residential, commercial and structural concrete applications that require reinforcement for shrinkage crack mitigation or load-bearing capacity. Some examples of applications are:
· Parking lots
· Sidewalks
· Patios
· Pool decks
· Driveways
· Bridge decks
· Barriers
· Seawalls
· Balconies
· And more
Performance and Parameters of FRP Rebar
The following table shows the typical properties of fiberglass rebar according to ASTM D7957 standards. The actual values may vary depending on the manufacturer and the product.
| Bar Size | Nominal Diameter (mm) | Cross Sectional Area (mm²) | Ultimate Tensile Strength (MPa) | Ultimate Tensile Load (kN) | Modulus of Elasticity (GPa) |
| #2 | 6.4 | 32.2 | 1034 | 33.3 | 46.9 |
| #3 | 9.5 | 71.3 | 1034 | 73.7 | 46.9 |
| #4 | 12.7 | 127.6 | 1034 | 131.9 | 46.9 |
| #5 | 15.9 | 199.6 | 1034 | 206.3 | 46.9 |
| #6 | 19.1 | 287.0 | 1034 | 296.8 | 46.9 |
| #7 | 22.2 | 387.1 | 1034 | 400.0 | 46.9 |
| #8 | 25.4 | 508.0 | 1034 | 525.3 | 46.9 |
How to Use FRP Rebar
FRP rebar can be installed in a similar way as steel rebar, with some modifications to account for the different properties of the material. Some general guidelines are:
Use appropriate tools to cut, bend and tie FRP rebar, such as diamond blades, mandrels and plastic ties.
Follow the design specifications for spacing, cover depth, lap length, etc., as recommended by the engineer or code.
Avoid damaging the surface or core of FRP rebar during handling, storage or installation.
Protect FRP rebar from direct sunlight or high temperatures during storage or installation.
For more detailed information on how to use FRP rebar, please refer to the FAQs section of Owens Corning Infrastructure Solutions website.
Conclusion
FRP rebar is a stronger, lighter and more durable concrete reinforcement material that offers many benefits over steel rebar in various applications. It is a cost-effective, corrosion-resistant and non-conductive solution that can enhance the performance and longevity of concrete structures.
If you are interested in using FRP rebar for your next project, please contact us for more information and a quote. We are a leading supplier of FRP rebar in China, with a reputation for quality, reliability and customer satisfaction. We look forward to hearing from you soon.
Technical Summary & Engineering Insights
Targeted Product FAQ
Production Process
Pultrusion Profile Equipment
Fiberglass placed on a shelf
Profile mold debugging
Profile cutting
Profile punching
Profile cutting details control
Profile inspection
Profile packaging
Certificate
FAQ
01- Are you Trading Company or Manufacturing Factory?
We are both manufacturer trading and company. We have our own factory and we have better service ofoverseas customers. Welcome to send your inquiry!
02- I am interested in your products, could I get sample for free?
We can supply a few pieces FREE samples if we have some in stock, and you only need to pay the freight cost by yourself. Welcome to send your inquiry for FREE samples!
03- How about the Delivery time?
10-15days after receiving the deposit based on the MOQ. Normally, 30-35days to finish the order for a 20ft container. Welcome to ask for the detailed delivery time according to your order quantity!
04- How can you guarantee the product quality?
Our whole production lines and products have been certificated by IS09001:2015, and it’s been followed strictly. We also have the professional QC team, and each our package worker will be in charge of the final inspection according to the QC instruction before packing.
05- What is about the payment terms.
Basically, the payment terms areT/T,L/C at sight. Western Union, Paypal, Moneygram, Alipay Credit card are acceptableforsample order.
06- Can you do OEM for me?
We accept all OEM orders,just contact us and give me your design,we will offer you a reasonable price ASAP.
