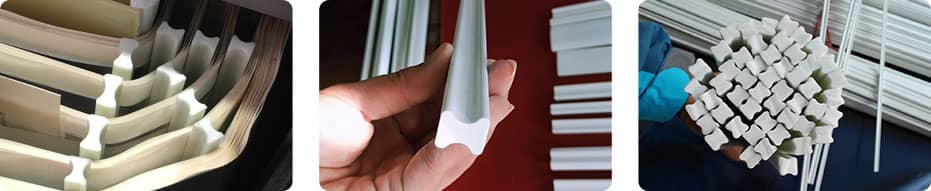

Haikuo elite-tier FRP Dog Bone profiles (also recognized as fiberglass dog bone shapes or composite dovetail spacer blocks) represent the pinnacle of high-performance electromechanical insulation technology designed for global heavy power industries. Precision-fabricated via our high-end automated continuous thermal pultrusion line sequence, these specialized structural shapes tightly cross-link high-density E-glass fiber yarns and multidirectional fabrics with advanced high-temperature thermosetting resins (such as premium epoxy, vinyl ester, or specialized unsaturated polyester matrix). This specialized electromechanical configuration results in a structural profile with magnificent flexural strength, immense dimensional stability, and ultimate dielectric performance.
Inside heavy-duty electrical infrastructure, standard polymer spacers or organic timber wedges degrade rapidly under intense continuous thermal loads, moisture absorption, and intense electromagnetic vibrations, causing catastrophic short-circuit failures. Haikuo structural fiberglass dog bone bars permanently eliminate these power engineering risks. Featuring a precisely calibrated dog-bone cross-section, our premium insulating profiles function as robust coil winding isolation supports, stator slot wedges, and mechanical dovetail spacer blocks that comfortably withstand extreme radial magnetic compression and structural shear forces across global smart grid assemblies.
Key Electromechanical Advantages of Haikuo FRP Dog Bone Profiles
- Outstanding Dielectric Strength & Electrical Insulation: Delivers superior volume resistivity and high breakdown voltage limits, guaranteeing 100% partial discharge protection near high-voltage grids.
- Elite Class H Thermal Endurance: Specially engineered to retain absolute mechanical rigidity, zero physical warping, and robust load capacities under continuous operating temperatures exceeding 180°C.
- Incredible Mechanical Shear & Bending Rigidity: Designed to absorb violent dynamic torque, magnetic harmonic vibrations, and continuous inward crushing pressure during aggressive transformer short-circuit tests.
- Zero Moisture Absorption and Acid Immunity: 100% impervious to industrial transformer oils, moisture condensation, and aggressive atmospheric chemical vapors, eliminating dielectric track leakage entirely.
- Micro-Calibrated Dimensional Tolerances: Manufactured through precise continuous thermal dies to guarantee millimetric precision on the dovetail interlocking edges, facilitating seamless hardware insertion into critical stator core slots.
Product Specifications & Technical Insulation Dimensions
The matrix below showcases our standard technical dimensions and mechanical parameters optimized for high-power electrical switchgear grids, motor stator manufacturing, and wholesale dry-type transformers component supply lines. Our direct-to-factory facility supports full custom customization of core widths, height profiles, customized resin classes, flame retardant indices (UL94 V-0 compliance), and bespoke cut-to-length metrics to fit your exact engineering blueprints.
| Model Series | Head Width (W1 – mm) | Neck Width (W2 – mm) | Total Height (H – mm) | Dielectric Strength (KV/mm) |
|---|---|---|---|---|
| ZS-DB-1006 | 10.0 mm | 6.0 mm | 6.0 mm | ≥ 12.0 |
| ZS-DB-1408 | 14.0 mm | 8.0 mm | 8.0 mm | ≥ 14.0 |
| ZS-DB-2012 | 20.0 mm | 12.0 mm | 12.0 mm | ≥ 15.0 |
| ZS-DB-CUSTOM | Custom Dimensions | Bespoke Profiles | 4.0 – 30.0 mm | Engineered per Spec |
High-Density Electromechanical Application Scenarios & Insulation Systems
Due to their elite dimensional precision, extreme thermal-dielectric ratings, and mechanical torque endurance, Haikuo pultruded insulating dog bones are heavily integrated across elite global power networks:
- Dry-Type Transformers Assembly: Functioning as advanced air duct spacers, low-voltage/high-voltage coil winding isolation barriers, and structural core clamping slats.
- Heavy Electrical Motor & Generator Lines: Operating as high-stiffness stator slot wedges, armature coil support bars, phase insulation barriers, and dynamic spacer bars.
- Electrical Switchgear & Control Enclosures: Serving as arc-chute partition pillars, high-voltage busbar supports, insulating connection plates, and switchgear grids.
- On-Load Tap Changer (OLTC) System Infrastructure: Providing rigid, non-conductive framework rods, high-insulation structural sliders, and precise mechanical linkage components.
Rigid Industrial Quality Assurance and Dielectric Testing Standards
Every single batch of Haikuo composite insulation profiles undergoes uncompromising verification within our modern quality control testing facility. We execute continuous high-voltage breakdown analysis, barcol hardness testing, thermal weight loss simulation at 200°C, and strict ASTM mechanical shear index validation, ensuring that our products provide zero-defect electromechanical insulation under the most intense electrical grid stressors on earth.
Technical Summary & Engineering Insights
Executive Summary: Haikuo elite-tier FRP Dog Bone profiles and precision-molded fiberglass dovetail spacers are heavy-duty electrical insulating shapes engineered to deliver maximum dielectric strength and exceptional mechanical shear resistance for global dry-type transformers, heavy electric motors, and high-voltage switchgear grids. Fabricated via an automated continuous composite pultrusion line that tightly cross-links high-density E-glass fiber yarns with high-temperature epoxy or vinyl ester thermosetting resins, these rigid insulation bars easily withstand intense magnetic compression and continuous harmonic vibrations without structural warping or delamination. Designed to comfortably meet Class H thermal endurance (exceeding 180°C) and stringent UL94 V-0 flame retardant standards, they feature complete immunity to moisture absorption and transformer oil degradation, entirely preventing partial discharge and dielectric tracking failure. Available in micro-calibrated custom dimensions, these versatile slot wedges and coil winding isolation components serve as the definitive global standard for modern smart grid assemblies.
| Electromechanical Insulation Matrix | Haikuo FRP Dog Bone | Traditional Phenolic Cotton Rods | Basic Nylon / PVC Spacers |
|---|---|---|---|
| Dielectric Strength (Breakdown KV/mm) | Ultra-High (≥15 KV/mm; Zero tracking) | Moderate (~10 KV/mm) | Low (Prone to arc tracking breakdown) |
| Thermal Rating Compliance | Class H (180°C+ Continuous operation) | Class E/B (Carbonizes under intense heat) | Class A (Softens and warps at 90°C) |
| Short-Circuit Shear & Flex Rigidity | Elite Lamination Strength (≥350 Mpa) | Moderate (Prone to moisture delamination) | Extremely Poor (Deforms under load) |
| Transformer Oil & Moisture Immunity | 100% Inert (Zero absorption/dissolution) | Absorbs moisture (Swells and degrades) | Good resistance (But oil softens polymers) |
| Flame Retardant Performance | UL94 V-0 (Self-extinguishing matrix) | Flammable (Releases toxic smoke) | Variable (Melts and drips hazards) |
Targeted Product FAQ
Q1: How does utilizing an FRP Dog Bone profile prevent partial discharge and dielectric tracking failure in dry-type transformers?
A1: Partial discharge often triggers along organic insulation wedges due to moisture absorption or air voids inside the material matrix. Haikuo FRP Dog Bone segments are precision-pultruded using high-purity, cross-linked epoxy or vinyl ester systems under extreme thermal consolidation, resulting in a completely solid, void-free core with near-zero moisture absorption. This advanced composite profile provides a monumental volume resistivity and absolute tracking resistance index, preventing dielectric breakdown under intense voltage stresses and fitting perfectly within complex electrical layouts alongside our pultruded fiberglass profiles.
Q2: Can your fiberglass dovetail spacer blocks comfortably sustain continuous Class H operating temperatures?
A2: Yes. Traditional electrical spacers like nylon or phenolic boards soften, warp, or carbonize under continuous intense thermal cycles, leading to structural loose gaps. Our premium Fiberglass Dog Bone bars are custom-formulated to comfortably surpass Class H thermal resistance parameters (safely exceeding 180°C continuous operational loads). They maintain absolute cross-sectional geometry, high flexural modulus, and zero weight loss during high-temperature baking or prolonged full-load grid operations.
Q3: How do your insulating dog bone profiles perform against dynamic short-circuit mechanical shear forces inside heavy electric motors?
A3: When unexpected short-circuits occur, winding coils generate massive, violent radial magnetic thrusts that subject stator slot wedges to extreme compressive and shear forces. Haikuo composite insulation bars utilize high-density E-glass fiber yarns woven longitudinally with multi-directional mats, yielding a monumental lamination shear and bending rigidity exceeding 350 MPa. This robust composite grid effortlessly absorbs rapid dynamic torque and mechanical vibrations, securing the conductor coils firmly in place.
Q4: Are these composite dovetail spacers fully compatible with oil-immersed transformers and aggressive cooling fluids?
A4: Yes, absolutely. Standard industrial polymers tend to dissolve, soften, or leach chemical impurities that degrade the cooling properties of dielectric oils. Because our thermosetting polymer matrices are completely cured and chemically inert, our FRP Dog Bone shapes are entirely immune to transformer oil immersion, synthetic esters, and aggressive solvent splashes, ensuring 100% sterile performance over decades without compromising oil purity or insulation integrity.
Q5: What dimensional tolerances can your factory guarantee for custom interlocking stator core slots?
A5: Precision engineering is mandatory for modern electrical automation. Haikuo operates high-end continuous thermal pultrusion dies that maintain ultra-tight dimensional profiles within ±0.05mm on critical neck and head dimensions. We support complete wholesale customization regarding cross-sectional drawings, fire-retardant classes certified to UL94 V-0, and pre-cut customized lengths. Please contact our electromechanical engineering desk to align your assembly blueprints with our extensive portfolio of advanced insulating shapes and high-strength pultruded fiberglass profiles.
Production Process
Pultrusion Profile Equipment
Fiberglass placed on a shelf
Profile mold debugging
Profile cutting
Profile punching
Profile cutting details control
Profile inspection
Profile packaging
