Fiberglass Angle Pultrusion Mould: High-Precision Dies for Strong L-Profiles

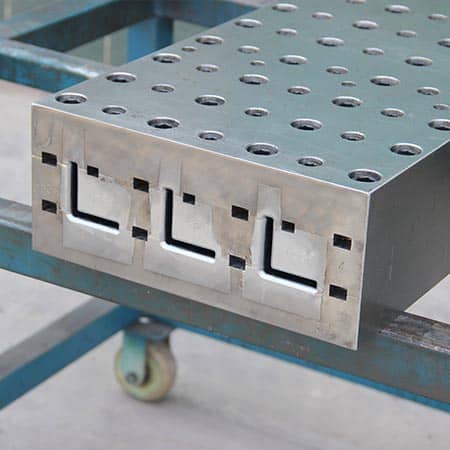

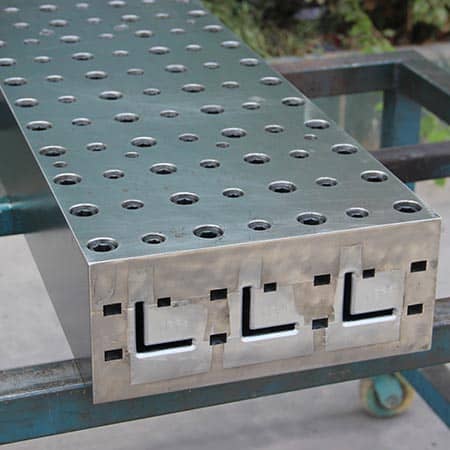

Our high-precision Fiberglass Angles Pultrusion Moulds are built to raise structural composite output. Engineered from Cr12/H13 steel with a mirror-finish cavity and strong thermal stability, they turn out consistent, high-strength L-profiles run after run.
Executive standard
Straightness: 0.02mm Smoothness: Ra=0.025~0.012 Cavity surface hardness: < 0.02mm Boundary tolerances: ±0.3mm Plating thickness: 0.04-0.05mm Provide Customized Services
Precision Tooling for Structural FRP Angles
Across the 2026 global infrastructure market, Fiberglass Angles (L-profiles) have become essential in electrical cable trays, cooling tower frameworks, and non-conductive safety ladders. The Fiberglass Angles Pultrusion Mould is purpose-built to handle the cooling and curing quirks that come with a right-angled geometry. At Guangdong Haikuo, our angle dies use optimized thermal zones to head off the warping or bowing that commonly plagues asymmetrical profiles, so every angle leaves the die at a true 90 degrees.
1. How Angle Pultrusion Works
Turning out a structural FRP angle takes more than cutting an L-shaped slot — it requires tight control of the fiber-to-resin ratio right at the corner vertex:
- Corner Stress Optimization: The mould’s internal apex is CNC-machined to a specific radius so fiber reinforcement packs densely there, preventing longitudinal cracking at the corner.
- Zonal Temperature Profiling: Multi-zone heating (entry, gelation, and curing zones) keeps the resin cross-linking uniform across both legs of the angle, holding dimensional accuracy.
- Tapered Compaction: A progressive taper at the mould entrance ramps up internal pressure gradually, pushing out trapped air for a void-free, high-density composite.
2. Premium Materials & Surface Engineering
Standing up to the continuous scouring of glass fiber reinforcement at production speed calls for high-performance metallurgy:
- Cr12 / Cr12MoV: A high-carbon, high-chrome steel delivering strong wear resistance (HRC 58-62) for standard high-volume glass fiber runs.
- H13 Tool Steel: The preferred grade for epoxy or polyurethane pultrusion, offering superior toughness and thermal stability.
- Hard Chrome Plating (Ra 0.012): A mirror-polished cavity plated with 0.05mm of industrial hard chrome gives an ultra-low-friction surface that reduces pulling force, extends mould life, and leaves the angles with a smooth, “Class-A” finish.
3. Technical Parameters & Execution Standards
| Engineering Property | Haikuo Standard Value | Benefit to Production |
|---|---|---|
| Mould Specification | Fully Customizable (e.g., 50×50, 75×75) | Tailored to project structural loads. |
| Cavity Material | Cr12 / H13 / P20 / 38CrMoAI | Superior wear & heat resistance. |
| Cavity Hardness | HRC 55 – 62 | Immune to fiber-induced abrasion. |
| Surface Smoothness | Ra 0.025 ~ 0.012 | Reduces pulling force and energy costs. |
| Straightness | < 0.02 mm / meter | Ensures perfect alignment in assemblies. |
| Angle Tolerance | ± 0.5° | Precision fit for structural joints. |
4. Factors Influencing Angle Quality
- Reinforcement Balance: Our moulds are designed to work with a mix of rovings for longitudinal strength and mats for transverse strength, ensuring the angle doesn’t split under load.
- Resin Consistency: Compatible with Polyester, Vinyl Ester, and Polyurethane systems, the mould handles a wide range of chemical exotherms.
- Tooling Lifespan: A mirror-finish chrome-plated Cr12 die can produce over 100,000 meters of angle profile before requiring a surface refresh.
10 Professional FAQs: Fiberglass Angle Moulding
Q1: “How do you prevent the angle from ‘opening up’ (exceeding 90 degrees) after exiting the die?”
A: This is caused by unbalanced curing. We engineer the heating zones and resin formulation advice to ensure equal shrinkage on both legs of the angle.
Q2: “What is the best steel for a high-volume angle production line?”
A: Cr12MoV is the industry standard for durability. For specialized resins like Phenolics, we recommend H13 steel for better corrosion resistance.
Q3: “Can I use the same die for both 3mm and 5mm thick angles?”
A: No. Pultrusion is a fixed-cavity process. The wall thickness is machined into the die to ensure proper compaction and structural density.
Q4: “Is hard chrome plating essential for L-profiles?”
A: Yes. Without it, the “frictional drag” on the corner of the angle would be too high, leading to surface tearing and machine stalling.
Q5: “Why is the straightness tolerance so tight (0.02mm)?”
A: FRP angles are often used as structural supports. Even a slight bow makes it impossible to bolt them to other structural members in a frame.
Q6: “How do you handle the fiber guiding at the 90-degree corner?”
A: Every angle die includes a set of custom-designed stainless steel pre-former plates that fold the mats into the L-shape before they enter the heated zone.
Q7: “Can the die produce equal and unequal leg angles?”
A: Yes. We customize the die cavity to any geometry, including unequal legs (e.g., 100mm x 50mm) for specific engineering designs.
Q8: “What is the typical pulling speed for a 50x50x5mm angle?”
A: Depending on the resin, pulling speeds generally range from 0.6 to 1.0 meters per minute.
Q9: “How do you clean the ‘inner corner’ of the die?”
A: Our mirror-finish Ra 0.012 makes cleaning easy. We provide matching brass scrapers that fit the internal radius for safe residue removal.
Q10: “Do you offer technical support for resin temperature settings?”
A: Yes. Along with the mould, we provide a recommended “Thermal Map” based on your specific resin type to ensure immediate production success.
Expert Structural Tooling Consultation
Optimize your structural production with Guangdong Haikuo Composite Materials Co., Ltd. Led by Helena Wang, our engineering team is the trusted partner for high-precision FRP Pultrusion Moulds worldwide.
Discuss your structural requirements with us:
- Lead Engineering Consultant: Helena Wang
- Technical Engineering Email: helena@frphk.co
- Global WhatsApp: +86 189 5198 8522
Tooling Specifications & Engineering Insights
| Die Steel Grade Material | H13 Tool Steel (Premium) | Cr12MoV Die Steel (Standard) | P20 Mold Steel (Economical) |
|---|---|---|---|
| Core Working Lifespan | Excellent (Over 50,000+ meters with fiberglass) | High (Around 30,000 – 40,000 meters) | Moderate (Best for short-run prototyping) |
| Thermal Fatigue Resistance | Ultra-High (Maintains HRC hardness at high temperature) | Moderate (Good for polyester matrices) | Poor (Prone to dimensional wear under continuous PU) |
| Internal Mirror Polish Cap | Perfect (Achieves Ra 0.012 μm easily) | Excellent (Achieves Ra 0.025 μm) | Standard (Achieves Ra 0.040 μm) |
| Best Application Profiles | L-angle runs requiring maximum tool life and dimensional stability | Standard-volume L-angle production | Low-volume prototyping or trial runs of L-angle |
Precision Mold Engineering Q&A
Q1: Why is a 0.04-0.05mm hard chrome plating thickness critical for FRP Angles Pultrusion Mould: Precision Dies for High-Strength L-Profiles?
Answer: Glass fiber rovings and mats are highly abrasive. During continuous pultrusion, the reinforced matrix creates significant scratching friction against the cavity walls of FRP Angles Pultrusion Mould: Precision Dies for High-Strength L-Profiles. A precise 0.04-0.05mm hard chrome layer raises surface micro-hardness and protects the underlying tool steel, extending die lifespan by over 40% while maintaining consistent angle geometry run after run.
Q2: How does internal mirror polishing to Ra 0.012-0.025 μm affect pull force on FRP Angles Pultrusion Mould: Precision Dies for High-Strength L-Profiles?
Answer: A mirror-polished cavity dramatically reduces the dynamic coefficient of friction inside the L-angle shaping channel. Lower friction means the pultrusion machine needs less clamping/traction force to advance the curing composite, which cuts down on line stiction, prevents surface fiber blooming, and reduces energy consumption over long production runs.
Q3: Which steel grade should be specified for high-volume production with FRP Angles Pultrusion Mould: Precision Dies for High-Strength L-Profiles?
Answer: For high-volume, continuous manufacturing, H13 tool steel or Cr12MoV die steel is recommended. H13 delivers the longest working lifespan and best thermal fatigue resistance, while Cr12MoV offers strong performance at a lower cost for standard-volume runs — P20 mold steel remains a cost-effective option for prototyping or short trial batches.
Q4: Can FRP Angles Pultrusion Mould: Precision Dies for High-Strength L-Profiles be customized to non-standard dimensions or OEM specifications?
Answer: Yes. As with all our pultrusion tooling, dimensions, cavity count, and surface treatment can be engineered to your exact drawing or sample — our in-house CNC mold fabrication team supports both standard catalog sizes and fully custom OEM tooling requests.
Q5: Which resin systems is FRP Angles Pultrusion Mould: Precision Dies for High-Strength L-Profiles compatible with?
Answer: The die is compatible with the full range of resin systems used in FRP pultrusion, including unsaturated polyester, vinyl ester, epoxy, and phenolic resins. Let us know your target resin and cure profile and we can confirm the optimal cavity finish and heating zone setup.
Production Process
Engineer mould design
Profile mould debugging
Rough embryo leveling
Mold CNC machining
Mould punching
Surface grinding
Cavity inner wall polishing
Mold chrome
