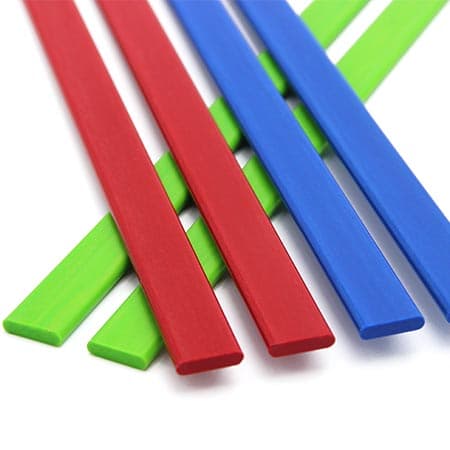

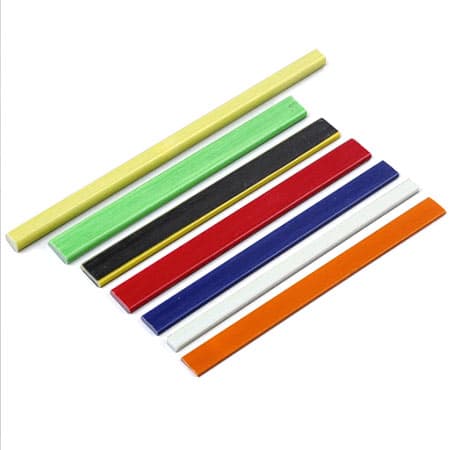

Fiberglass Strips | Pultruded FRP Flat Bars
Guangdong Haikuo produces premium fiberglass strips and FRP flat bars through high-precision pultrusion in Epoxy, Polyester, and Vinyl Ester resins — lightweight, high-strength, non-conductive solutions for construction, electrical, and sporting applications.
Customized service:
Thickness Color Size
Punch Hole To Cut
DescribeSolutionsFAQContact us
Fiberglass Strips: A Versatile Answer to Modern Structural Demands
Across industrial and commercial sectors in 2026, Fiberglass Strips, also known as FRP Flat Bars, have grown well beyond their original role as simple reinforcement. Designers now reach for these pultruded profiles wherever high elasticity, corrosion resistance, and a strong strength-to-weight ratio are needed. At Guangdong Haikuo, advanced pultrusion technology pulls high-purity glass fibers through precisely heated dies to produce flat profiles that outlast traditional steel and wood in both durability and functional versatility.
1. What Pultruded FRP Strips Bring to the Table
Our fiberglass strips are engineered around a distinct combination of mechanical and chemical properties:
- Exceptional Elasticity & Recovery: Where metal bars would deform, FRP strips handle repeated high-deflection bending and spring back to their original shape, which suits spring-tension applications well.
- Structural Weight Efficiency: At up to 75% less weight than steel, these strips cut transportation costs and ease on-site installation without giving up load-bearing capacity.
- Inherent Corrosion & UV Resistance: Rust, oxidation, and most industrial chemicals have no effect on our strips, and built-in UV inhibitors guard against surface degradation and “fiber blooming” outdoors.
- Superior Dielectric Strength: Being non-conductive, fiberglass strips provide a safety margin in electrical insulation work and avoid interference with sensitive electronic equipment.
2. Resin Systems and Performance Matrix
A fiberglass strip’s mechanical integrity comes down to its resin matrix, and we offer several chemical systems to match specific industrial demands:
| Resin Type | Density (g/cm³) | Tensile Strength (MPa) | Flexural Strength (MPa) | Primary Advantage |
|---|---|---|---|---|
| Epoxy | 1.8 – 2.0 | 600 – 850 | 800 – 1000 | Maximum mechanical strength & fatigue resistance. |
| Vinyl Ester | 1.7 – 1.9 | 500 – 700 | 700 – 900 | Superior chemical and acid resistance. |
| Polyester | 1.6 – 1.8 | 400 – 600 | 600 – 800 | Cost-effective for general structural use. |
| Phenolic | 1.8 – 2.0 | 500 – 700 | 700 – 900 | Excellent fire safety and low smoke toxicity. |
3. Applications Across Industries
- Construction & Infrastructure: Concrete reinforcement bars, supports for decorative cladding, and lightweight trusses in tension structures.
- Electrical & Telecommunications: Insulating spacers inside transformers, cable tray dividers, and non-conductive support masts for cell towers.
- Sporting Goods & Recreation: Core reinforcement for skis and snowboards, high-flex components for archery bows, and lightweight tent poles.
- Transportation & Logistics: Lightweight floor stiffeners for truck trailers and aerodynamic fairing supports for EVs.
- Agriculture & Horticulture: Corrosion-proof trellises, greenhouse stakes, and zero-maintenance heavy-duty fencing.
10 FAQs on Fiberglass Strip Engineering
Q1: “Can FRP strips work as springs?”
A: Yes — their high flexural strength and elastic memory make epoxy-based fiberglass strips a common choice in industrial vibrating feeders and agricultural spring tines.
Q2: “How should I choose between Polyester and Vinyl Ester for flat bars?”
A: Vinyl Ester is the right call for corrosive environments (chemical exposure or marine); for general indoor or structural use, Polyester offers the best value.
Q3: “What’s the maximum thickness for pultruded strips?”
A: Standard strips run 2mm to 10mm, though flat bars up to 25mm thick can be pultruded depending on width and mechanical requirements.
Q4: “Are strip edges sharp after pultrusion?”
A: Precision-ground pultrusion dies produce smooth, safe edges, and corners can be further radiused for specialized handle applications.
Q5: “Do fiberglass strips interfere with 5G or WiFi signals?”
A: No — fiberglass is RF-transparent, which makes these strips well suited to shrouds or supports in telecommunications equipment.
Q6: “Can they be bonded to other materials, like wood or metal?”
A: Yes — two-part epoxy or polyurethane adhesives bond exceptionally well; a light surface sanding beforehand improves mechanical grip.
Q7: “Is the color integrated or painted on?”
A: Pigment is blended directly into the resin matrix during production, so the color won’t chip, peel, or flake off.
Q8: “How thermally conductive are these strips?”
A: Very low, at 0.2 – 0.4 W/mK, which makes them effective thermal breaks in window frames and building facades.
Q9: “How can fiberglass strips be cut without fraying the edges?”
A: A high-speed diamond-grit blade or carbide-tipped saw works well; for precision work, water-jet cutting gives a perfect edge finish.
Q10: “Are pre-drilled or machined strips available?”
A: Yes — CNC secondary processing covers drilling, slotting, and precision cutting to length, so strips arrive ready for assembly.
Tailored Composite Solutions
For high-precision Fiberglass Strips tailored to your engineering needs, partner with Guangdong Haikuo Composite Materials Co., Ltd. Under Helena Wang‘s leadership, our team supplies world-class structural solutions to the global market.
Reach our engineering department for a quote:
- Technical Sales Lead: Helena Wang
- Direct Engineering Email: helena@frphk.co
- Global WhatsApp: +86 189 5198 8522
Technical Summary & Engineering Insights
| Performance Factor | Haikuo Fiberglass Strips | Steel Flat Bar | Aluminum Flat Bar |
|---|---|---|---|
| Strength-to-Weight Ratio | High elasticity and strength | Heavy, rigid, no elasticity | Light but lower strength |
| Corrosion Resistance | Total immunity | Rusts, needs coating | Resists rust, can corrode/pit |
| Electrical Conductivity | None | Conductive | Conductive |
| Flexibility / Elastic Recovery | High, flexes and recovers shape | Low, permanently bends | Low, permanently bends |
| Typical Use | Electrical insulation, sporting goods, construction | General structural | General structural, lightweight parts |
Targeted Product FAQ
Q1: What resin systems are available for fiberglass strips?
A1: We offer Epoxy, Polyester, and Vinyl Ester resin systems — each suited to different mechanical and chemical resistance requirements; let us know your application and we’ll recommend the right one.
Q2: What thicknesses and widths are available?
A2: See the Customized Service options above for thickness, color, and size — custom dimensions are available, just send us your specification.
Q3: Are fiberglass strips suitable for sporting goods applications?
A3: Yes, their high elasticity and strength-to-weight ratio make them popular for products like kite/tent poles and other flexible sporting equipment components.
Q4: Can fiberglass strips be used for electrical insulation applications?
A4: Yes, their complete non-conductivity makes them well suited for electrical insulation and support applications where metal strip is unsuitable.
Q5: Can strips be punched or cut to custom shapes?
A5: Yes — punching, cutting to size, and other secondary processing are available; specify your requirements when requesting a quote.
Production Process
Pultrusion Profile Equipment
Fiberglass placed on a shelf
Profile mold debugging
Profile cutting
Profile punching
Profile cutting details control
Profile inspection
Profile packaging
