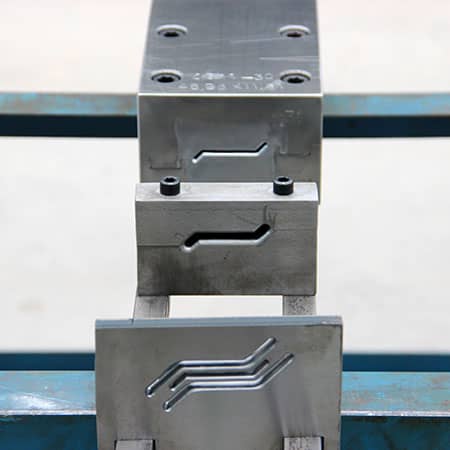

GRP Composite Shutter Pultrusion Die: High-Precision FRP Profile Tooling
Improve your FRP output with this high-precision GRP composite shutter pultrusion die, built from Cr12/H13 steel with a mirror-finish cavity and outstanding thermal stability for intricate shutter and louver profiles.
Executive standard
Straightness: 0.02mm Smoothness: Ra=0.025~0.012 Cavity surface hardness: < 0.02mm Boundary tolerances: ±0.3mm Plating thickness: 0.04-0.05mm Provide Customized Services
Precision tooling at the core of high-performance composite shutter manufacturing.
Engineering Excellence in Pultrusion Die Design
Within the composite industry, roughly 90% of a pultruded profile’s quality traces back to die precision. The GRP Composite Shutter Pultrusion Mould is a sophisticated engineering tool built to manage the intricate geometries of louvers and shutter frames. Compared with standard pipe moulds, shutter moulds call for far greater precision in wall thickness and surface finish to deliver functional aerodynamics alongside visual appeal. At Guangdong Haikuo, aerospace-grade steel and multi-stage heat treatment go into every mould, so results stay consistent across millions of meters of production.
1. How the Pultrusion Mould Works
A GRP Shutter Mould functions simultaneously as a chemical reactor and a forming press, balancing temperature, pressure, and speed at every stage:
- Impregnation & Guiding: Glass or carbon fiber reinforcements are saturated in a resin bath, then precisely aligned through pre-forming guides before entering the mould.
- Zonal Heating: The mould is split into three or more heating zones — the entry zone stops premature gelation, the middle zone kicks off the exothermic reaction, and the exit zone completes the structural cure.
- Phase Transformation: Within the cavity, the resin moves from liquid to gel and finally to a solid structural composite as the mould’s internal taper compresses it.
- Continuous Pulling: A reciprocating puller continuously draws out the cured shutter profile, which is then cut to length with diamond-tipped saws.
2. Material Engineering & Surface Treatment
A pultrusion die’s internal environment is highly abrasive, so material selection is critical to prevent “mold fouling” and internal scratching:
- Cr12 / Cr12MoV: A high-carbon, high-chrome steel delivering exceptional wear resistance for high-volume runs.
- H13 Tool Steel: Chosen for epoxy or polyurethane pultrusion because of its superior toughness at elevated temperatures.
- Hard Chrome Plating (0.04-0.05mm): Key to minimizing friction — a mirror-finish (Ra=0.012) cavity keeps pulling force as low as possible and extends gripper life on the machine.
3. 2026 Technical Parameters & Execution Standards
| Parameter | Standard Value | Engineering Significance |
|---|---|---|
| Cavity Hardness | HRC 55-62 | Prevents abrasion from glass fibers. |
| Surface Smoothness | Ra 0.025 ~ 0.012 | Ensures a “Class A” finish on profiles. |
| Straightness | < 0.02mm per meter | Prevents warping of the final profile. |
| Parallelism | ± 0.01mm | Ensures uniform wall thickness. |
| Plating Hardness | ≥ HV 900 | Extends mould life by 300%. |
4. Factors Influencing Mould Performance
- Fiber Volume Fraction: The mould must be designed to accommodate the specific fiber-to-resin ratio to prevent internal pressure spikes.
- Shrinkage Compensation: Advanced shutter moulds are slightly oversized to account for the resin’s chemical shrinkage during cross-linking.
- Cooling Channel Design: While the mould is heated, the entry zone may require cooling to prevent resin build-up and “hanging” at the inlet.
10 Professional FAQs: Pultrusion Mould Procurement
Q1: “How many meters can a chrome-plated Cr12 mould produce before re-plating?”
A: Typically, between 50,000 and 100,000 meters depending on the resin type and fiber abrasiveness.
Q2: “What steel is best for Polyurethane (PU) pultrusion?”
A: We recommend P20 or H13 steel with a specialized nitriding treatment, as PU can be more aggressive toward standard chrome plating.
Q3: “Can a single mould produce different shutter thicknesses?”
A: Generally, no. Each die is precisely machined for a specific cross-section. Thickness is determined by the cavity geometry.
Q4: “Why is the straightness of the mould so critical for shutters?”
A: Even a 0.1mm deviation can cause the profile to ‘banana’ or twist, making it impossible to assemble into a shutter frame.
Q5: “How do you handle the exothermic heat peak in the mould?”
A: We design the heating zones with independent PID controllers to offset the heat generated by the resin’s curing reaction.
Q6: “Is hard chrome plating essential for all moulds?”
A: Yes. Without it, the friction between the glass fiber and the steel would lead to rapid wear and high pulling forces that could stall the machine.
Q7: “Can you provide custom moulds based on our CAD drawings?”
A: Absolutely. We specialize in 1:1 precision manufacturing based on customer STEP or DWG files, including shrink-rate adjustments.
Q8: “What is the typical lead time for a complex shutter mould?”
A: A high-precision shutter die usually takes 15-25 days for machining, heat treatment, and final polishing.
Q9: “Do you offer pre-forming templates with the mould?”
A: Yes, we provide matching stainless steel or nylon pre-forming guides to ensure the fiber enters the die in the correct orientation.
Q10: “How do I maintain the mould between production runs?”
A: The cavity should be cleaned of resin residue while warm and coated with a light anti-rust oil or mold-protectant spray.
Precision Tooling Consultation
Optimize your composite production with Guangdong Haikuo Composite Materials Co., Ltd. Led by Helena Wang, our tooling department specializes in the design and fabrication of world-class FRP/GRP pultrusion moulds.
Submit your design for a technical review:
- Tooling Project Manager: Helena Wang
- Technical Engineering Email: helena@frphk.co
- Global WhatsApp: +86 189 5198 8522
Tooling Specifications & Engineering Insights
| Die Steel Grade Material | H13 Tool Steel (Premium) | Cr12MoV Die Steel (Standard) | P20 Mold Steel (Economical) |
|---|---|---|---|
| Core Working Lifespan | Excellent (Over 50,000+ meters with fiberglass) | High (Around 30,000 – 40,000 meters) | Moderate (Best for short-run prototyping) |
| Thermal Fatigue Resistance | Ultra-High (Maintains HRC hardness at high temperature) | Moderate (Good for polyester matrices) | Poor (Prone to dimensional wear under continuous PU) |
| Internal Mirror Polish Cap | Perfect (Achieves Ra 0.012 μm easily) | Excellent (Achieves Ra 0.025 μm) | Standard (Achieves Ra 0.040 μm) |
| Best Application Profiles | shutter/louver profile runs requiring maximum tool life and dimensional stability | Standard-volume shutter/louver profile production | Low-volume prototyping or trial runs of shutter/louver profile |
Precision Mold Engineering Q&A
Q1: Why is a 0.04-0.05mm hard chrome plating thickness critical for GRP Composite Shutter Pultrusion Mould: High-Precision Tooling for FRP Profiles?
Answer: Glass fiber rovings and mats are highly abrasive. During continuous pultrusion, the reinforced matrix creates significant scratching friction against the cavity walls of GRP Composite Shutter Pultrusion Mould: High-Precision Tooling for FRP Profiles. A precise 0.04-0.05mm hard chrome layer raises surface micro-hardness and protects the underlying tool steel, extending die lifespan by over 40% while maintaining consistent shutter profile geometry run after run.
Q2: How does internal mirror polishing to Ra 0.012-0.025 μm affect pull force on GRP Composite Shutter Pultrusion Mould: High-Precision Tooling for FRP Profiles?
Answer: A mirror-polished cavity dramatically reduces the dynamic coefficient of friction inside the shutter/louver profile shaping channel. Lower friction means the pultrusion machine needs less clamping/traction force to advance the curing composite, which cuts down on line stiction, prevents surface fiber blooming, and reduces energy consumption over long production runs.
Q3: Which steel grade should be specified for high-volume production with GRP Composite Shutter Pultrusion Mould: High-Precision Tooling for FRP Profiles?
Answer: For high-volume, continuous manufacturing, H13 tool steel or Cr12MoV die steel is recommended. H13 delivers the longest working lifespan and best thermal fatigue resistance, while Cr12MoV offers strong performance at a lower cost for standard-volume runs — P20 mold steel remains a cost-effective option for prototyping or short trial batches.
Q4: Can GRP Composite Shutter Pultrusion Mould: High-Precision Tooling for FRP Profiles be customized to non-standard dimensions or OEM specifications?
Answer: Yes. As with all our pultrusion tooling, dimensions, cavity count, and surface treatment can be engineered to your exact drawing or sample — our in-house CNC mold fabrication team supports both standard catalog sizes and fully custom OEM tooling requests.
Q5: Which resin systems is GRP Composite Shutter Pultrusion Mould: High-Precision Tooling for FRP Profiles compatible with?
Answer: The die is compatible with the full range of resin systems used in FRP pultrusion, including unsaturated polyester, vinyl ester, epoxy, and phenolic resins. Let us know your target resin and cure profile and we can confirm the optimal cavity finish and heating zone setup.
Production Process
Engineer mould design
Profile mould debugging
Rough embryo leveling
Mold CNC machining
Mould punching
Surface grinding
Cavity inner wall polishing
Mold chrome
