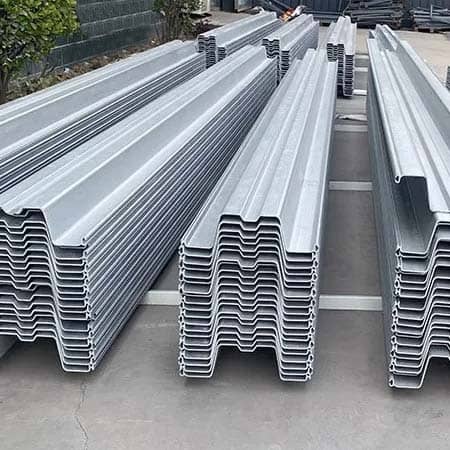

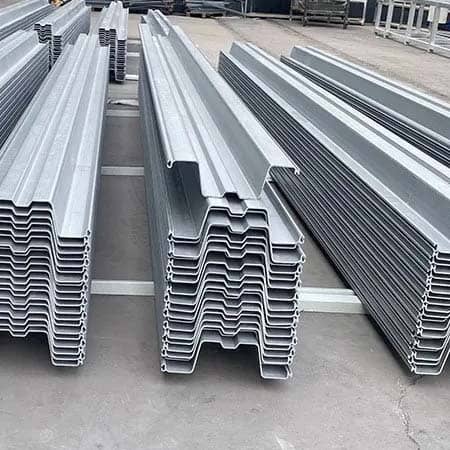

Vinyl Seawall — Type Z
This Type Z vinyl seawall is a coastal protection structure built from PVC vinyl sheet piling that resists erosion and stabilizes shorelines, offering a durable and environmentally friendly alternative to traditional materials.
Customized service:
Thickness Color Size
Punch Hole To Cut
DescribeSolutionsFAQContact us
A vinyl seawall is a coastal protection structure that relies on vinyl sheet piling to hold back erosion and stabilize the shoreline. Made from polyvinyl chloride (PVC), the piling is a durable, environmentally friendly material that stands up to saltwater, UV exposure, chemicals, and marine borers. It’s also lighter, easier to install, and more cost-effective than alternatives such as steel, concrete, or wood.
About Type Z Vinyl Sheet Piling
Type Z is a specific vinyl sheet piling profile with a Z-shaped cross-section, which gives it interlocking strength and better resistance to bending stress. This makes Type Z well suited to medium- and heavy-load applications like seawalls, bulkheads, retaining walls, and flood walls.
Performance and Parameter Data
The table below summarizes the performance and parameter data for Type Z vinyl sheet piling used in seawall applications:
| Parameter | Value |
| Color | Gray |
| Length | Customizable up to 24 feet |
| Width | 18 inches |
| Depth | 8 inches |
| Thickness | 0.25 inches |
| Weight | 5.4 lbs/ft |
| Section modulus | 13.1 in^3/ft |
| Moment of inertia | 52.4 in^4/ft |
| Bending stress | 4,900 psi |
| Deflection | 0.25 inches |
Installation Steps
Installing a vinyl seawall with Type Z sheet piling generally follows these steps:
1. Clear the site of debris, vegetation, or any obstacles that could get in the way of installation.
2. Mark out the seawall’s alignment and elevation using stakes, string lines, or lasers.
3. Drive the first pair of Type Z vinyl sheets into the ground with a vibratory or impact hammer, keeping them aligned both horizontally and vertically and driving to the desired depth or refusal.
4. Drive the next pair in, interlocking it with the previous pair, and repeat this sequence until the full seawall length is complete.
5. Backfill the seaward side with a suitable material such as sand, gravel, or stone for stability and drainage.
6. Finish the landward side with soil, sod, or landscaping as desired.
Benefits
A Type Z vinyl seawall brings several benefits to coastal protection projects, including:
· Long-term durability and resistance to corrosion
· Lower maintenance and repair costs
· Strong structural stability
· Attractive, versatile appearance
· Environmentally friendly, recyclable material
Technical Summary & Engineering Insights
| Performance Factor | Haikuo Vinyl Sea Wall (Type Z) | Steel Sheet Piling | Timber/Wood Piling |
|---|---|---|---|
| Saltwater/UV/Chemical Resistance | Excellent, PVC is inert to marine exposure | Corrodes, especially at the waterline | Rots below waterline over time |
| Weight | Lightweight, easy to install | Heavy | Moderate |
| Cost-Effectiveness | Cost-effective vs. steel/concrete | Higher material and protection cost | Lower upfront, but shorter life |
| Marine Borer Resistance | Immune | Not applicable, but corrodes | Vulnerable |
| Environmental Stability | Stable, no leaching of harmful compounds | Can leach rust/coating byproducts | Can leach treatment chemicals |
Targeted Product FAQ
Q1: What is the Type Z profile designed for?
A1: Type Z sheet piling uses a Z-shaped interlocking profile that provides strong wall continuity for erosion control, shoreline stabilization, and seawall construction.
Q2: Is vinyl sea walling as strong as FRP or steel sheet piling?
A2: Vinyl (PVC) sheet piling is well suited to lighter-duty shoreline stabilization and erosion control; for higher structural loads, our FRP Type U sheet piling may be the better fit — tell us your project’s load requirements and we can recommend the right product.
Q3: How is vinyl sheet piling installed?
A3: It’s typically installed by vibratory or impact driving similar to other sheet piling systems, taking advantage of its lighter weight for easier handling — we can advise based on your site conditions.
Q4: What is the expected service life of a vinyl sea wall?
A4: PVC sheet piling is designed for long-term marine exposure without rotting, rusting, or being damaged by marine borers, typically providing decades of stable service.
Q5: Can vinyl sea wall panels be combined with FRP sheet piling on the same project?
A5: In some projects, different pile types are used for different sections based on load and budget requirements — let us know your project layout and we can help advise on the best combination.
