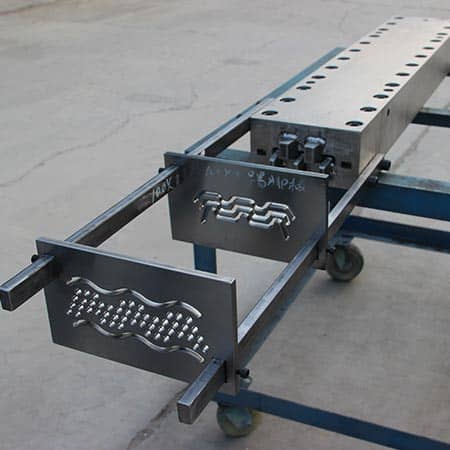

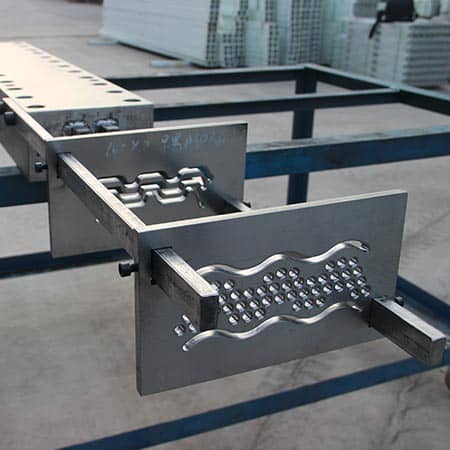

Pultrusion Profile Mould for GRP Toe Plates
This mold produces FRP profiles such as Flat strip, Channels, rod, Round tube, toe Plate, i beam, frame and etc., mounted on the FRP pultrusion machine, shaping each section as roving and resin are drawn continuously through the heated cavity.
Executive standard
Straightness: 0.02mm Smoothness: Ra=0.025~0.012 Cavity surface hardness: < 0.02mm Boundary tolerances: ±0.3mm Plating thickness: 0.04-0.05mm Provide Customized Services
Pultrusion Profile Mould for GRP Toe Plates is a die used to manufacture FRP (Fiber Reinforced Plastic) pipe. The pultrusion process draws resin-saturated fiber reinforcement through a heated die to form a continuous pipe of a defined cross-section and size. FRP pipe offers low weight, high strength, corrosion resistance, electrical insulation, and fire resistance, which is why it sees wide use across the power, chemical, construction, and transportation industries.
How Pultrusion Profile Mould for GRP Toe Plates Works
1. Reinforcement fiber (glass fiber, carbon fiber, etc.) unwinds from its spool and is guided into the resin impregnation bath.
2. The resin-saturated fiber then runs through a pre-shaping fixture that arranges it to the required profile before entering the die cavity.
3. Heat and pressure inside the die cure the resin, taking it from a liquid state through gelation to a hardened composite.
4. The finished section is drawn clear of the die by the pulling unit and cut to the specified length with a cut-off saw.
What Determines the Performance and Parameters of Pultrusion Profile Mould for GRP Toe Plates
Reinforcement type: the fiber grade and content selected influence the resulting strength, rigidity, and weight of the part, with richer fiber loadings generally producing a lighter, stronger section. Common reinforcements include glass, carbon, and aramid fiber.
Resin formulation: the resin type and its mixing ratio shape heat tolerance, corrosion resistance, and aging performance, and a more stable formulation translates into longer service life. Polyester, vinyl ester, and epoxy resins are typical choices.
Die geometry: the shape and dimensions machined into the die set the cross-section and overall size of the profile and affect both molding speed and quality, with tighter-tolerance dies giving more uniform, efficient production.
Mold Parameters and Executive Standards for This Pultrusion Tooling
| Mold name | GRP Toe Plate pultrusion profile mold |
| Specification | According to customer customization |
| Material | 40Cr, P20, Cr12, 38CrMoAI, H13 (optional) |
| Cavity Surface Treatment | Quenching and tempering, quenching, hard chrome plating, nitriding |
| Cavity hardness | HRC55-60 |
| Applicable resin | Unsaturated polyester, vinyl resin, epoxy resin, phenolic resin, polyurethane |
| Straightness | 0.02mm |
| Smoothness | Ra=0.025~0.012 |
| Cavity surface hardness | < 0.02mm |
| Boundary tolerances | ±0.3mm |
| Plating thickness | 0.04-0.05mm |
Tooling Specifications & Engineering Insights
| Die Steel Grade Material | H13 Tool Steel (Premium) | Cr12MoV Die Steel (Standard) | P20 Mold Steel (Economical) |
|---|---|---|---|
| Core Working Lifespan | Excellent (Over 50,000+ meters with fiberglass) | High (Around 30,000 – 40,000 meters) | Moderate (Best for short-run prototyping) |
| Thermal Fatigue Resistance | Ultra-High (Maintains HRC hardness at high temperature) | Moderate (Good for polyester matrices) | Poor (Prone to dimensional wear under continuous PU) |
| Internal Mirror Polish Cap | Perfect (Achieves Ra 0.012 μm easily) | Excellent (Achieves Ra 0.025 μm) | Standard (Achieves Ra 0.040 μm) |
| Best Application Profiles | toe plate runs requiring maximum tool life and dimensional stability | Standard-volume toe plate production | Low-volume prototyping or trial runs of toe plate |
Precision Mold Engineering Q&A
Q1: Why is a 0.04-0.05mm hard chrome plating thickness critical for GRP Toe Plate pultrusion profile mold?
Answer: Glass fiber rovings and mats are highly abrasive. During continuous pultrusion, the reinforced matrix creates significant scratching friction against the cavity walls of GRP Toe Plate pultrusion profile mold. A precise 0.04-0.05mm hard chrome layer raises surface micro-hardness and protects the underlying tool steel, extending die lifespan by over 40% while maintaining consistent toe plate geometry run after run.
Q2: How does internal mirror polishing to Ra 0.012-0.025 μm affect pull force on GRP Toe Plate pultrusion profile mold?
Answer: A mirror-polished cavity dramatically reduces the dynamic coefficient of friction inside the toe plate shaping channel. Lower friction means the pultrusion machine needs less clamping/traction force to advance the curing composite, which cuts down on line stiction, prevents surface fiber blooming, and reduces energy consumption over long production runs.
Q3: Which steel grade should be specified for high-volume production with GRP Toe Plate pultrusion profile mold?
Answer: For high-volume, continuous manufacturing, H13 tool steel or Cr12MoV die steel is recommended. H13 delivers the longest working lifespan and best thermal fatigue resistance, while Cr12MoV offers strong performance at a lower cost for standard-volume runs — P20 mold steel remains a cost-effective option for prototyping or short trial batches.
Q4: Can GRP Toe Plate pultrusion profile mold be customized to non-standard dimensions or OEM specifications?
Answer: Yes. As with all our pultrusion tooling, dimensions, cavity count, and surface treatment can be engineered to your exact drawing or sample — our in-house CNC mold fabrication team supports both standard catalog sizes and fully custom OEM tooling requests.
Q5: Which resin systems is GRP Toe Plate pultrusion profile mold compatible with?
Answer: The die is compatible with the full range of resin systems used in FRP pultrusion, including unsaturated polyester, vinyl ester, epoxy, and phenolic resins. Let us know your target resin and cure profile and we can confirm the optimal cavity finish and heating zone setup.
Production Process
Engineer mould design
Profile mould debugging
Rough embryo leveling
Mold CNC machining
Mould punching
Surface grinding
Cavity inner wall polishing
Mold chrome
