FRP Kick Plates & GRP Toe Boards: Safety Margins for Industrial Platforms
Guangdong Haikuo’s FRP kick plates strengthen platform safety with corrosion-resistant, non-conductive, high-strength GRP toe plates for walkways, handrails, and industrial gratings, available in custom M-shaped and W-shaped profiles.
Customized service:
Thickness Color Size
Punch Hole To Cut
DescribeSolutionsFAQContact us

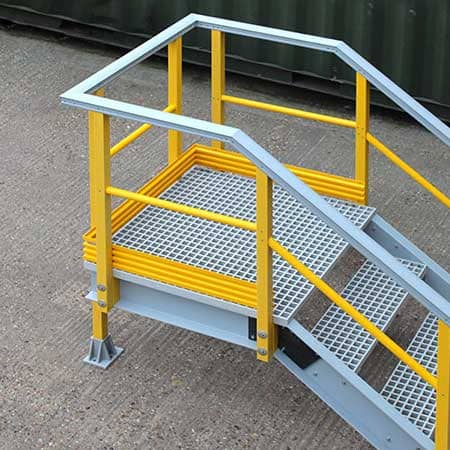

FRP Kick Plates: A Critical Line of Defense on Industrial Platforms
Across chemical plants, offshore rigs, and power substations in 2026, safety margins in these high-stakes settings are measured in millimeters. FRP Kick Plates, also called GRP Toe Plates, are safety profiles fitted at the base of handrails and walkways to stop tools, equipment, or debris from falling onto personnel below. Where steel alternatives corrode, our pultruded fiberglass kick plates deliver a permanent, maintenance-free solution built to integrate into modern modular structural systems.
1. Engineering Features and Material Benefits
At Guangdong Haikuo, kick plates are produced through an advanced pultrusion process that ensures high fiber density and consistent cross-sectional integrity. What sets them apart from traditional materials comes down to:
- Structural Rigidity vs. Weight: Despite being 75% lighter than steel, our FRP kick plates hold a tensile strength above 300 MPa, supporting long spans with minimal bracing.
- Total Corrosion Immunity: Built to hold up in environments saturated with acids, alkalis, and salt spray, conditions where galvanized steel fails within a few years.
- Dielectric & Thermal Safety: Being naturally non-conductive, these plates remove electrical grounding concerns and lower fire risk in high-voltage areas.
- UV Stability & Anti-Aging: With premium UV inhibitors and surfacing veils built in, our profiles resist cracking, fading, and brittleness under strong direct sunlight.
2. M-Shaped and W-Shaped Profile Geometries
The “M” and “W” cross-sections serve a structural purpose beyond appearance: engineered for stiffening, these shapes raise the moment of inertia so that 3mm to 5mm thick material can resist substantial lateral impacts without deforming.
Performance and Parameters
| Profile Shape | Width (mm) | Height (mm) | Thickness (mm) | Typical Application |
|---|---|---|---|---|
| M-shaped | 100 / 148 | 12 – 14 | 3.0 – 3.2 | Standard walkway handrails. |
| W-shaped | 100 | 14 – 19 | 3.2 – 5.0 | Heavy-duty impact zones. |
| Custom | Per Client | Per Client | Max 10mm | Specialized machinery guarding. |
Mechanical Properties (ASTM/ISO Tested)
| Property | Value | Unit |
| Tensile Strength | > 300 | MPa |
| Flexural Strength | > 400 | MPa |
| Impact Strength | > 50 | KJ/m² |
| Density | 1.8 – 2.0 | g/cm³ |
3. Where Kick Plates Do More Than Stop Falling Objects
- Chemical Processing & Plating: Guarding hazardous degreasing or pickling tanks against accidental tool drops.
- Offshore & Marine: Toe boards that won’t rust, for oil rigs and shipboard walkways.
- Power Substations: Barriers around high-voltage equipment, where metal conductivity poses a hazard.
- Water Treatment: Lightweight, rot-proof edging for clarifier walkways and filter press platforms.
10 FAQs on Choosing FRP Kick Plates
Q1: “Do these kick plates meet OSHA 1910.29 requirements?”
A: Yes — our 100mm and 148mm heights are purpose-built to meet and exceed OSHA’s falling-object protection requirements.
Q2: “What’s the best way to install GRP toe plates on existing metal gratings?”
A: 316 stainless steel universal G-clips or bolt-through assemblies are our recommendation — quick to install, with a secure, vibration-resistant fit.
Q3: “Are kick plates available in safety yellow?”
A: Safety Yellow is standard stock, though any RAL color can be produced to match corporate branding or visibility requirements.
Q4: “Are FRP kick plates fire-resistant?”
A: Yes — formulations are available meeting UL94-V0 and ASTM E84 Class A fire ratings for high-risk industrial settings.
Q5: “How is thermal expansion handled on long outdoor runs?”
A: FRP’s coefficient of thermal expansion is low, but on runs over 10 meters, we recommend slotted holes in the mounting clips to allow for minor movement.
Q6: “Can these be cut on-site?”
A: Yes — standard power saws with diamond or carbide-tipped blades handle it, and no “hot work” permit is needed.
Q7: “Should cut edges be sealed?”
A: In highly corrosive environments, applying a simple resin seal to cut edges is recommended to prevent moisture wicking and maximize longevity.
Q8: “What’s the typical lifespan in a coastal environment?”
A: A service life of 25+ years is typical, with no painting and no structural degradation.
Q9: “Can a custom shape be made for a specific OEM machine guard?”
A: Yes — as a leading pultrusion manufacturer, we design and build custom moulds to match specific profile requirements.
Q10: “How does the cost of FRP kick plates compare to aluminum?”
A: Upfront material cost is competitive, and the “Total Cost of Ownership” comes out significantly lower thanks to zero maintenance, easier installation, and a longer service life.
Industrial Safety Consultation, From the Experts
Protect your industrial facility with Guangdong Haikuo Composite Materials Co., Ltd. Under the leadership of Helena Wang, our team delivers world-class FRP Kick Plate solutions to infrastructure projects worldwide.
Request a technical quote for your safety project:
- Safety Solutions Manager: Helena Wang
- Technical Engineering Email: helena@frphk.co
- Global WhatsApp: +86 189 5198 8522
Technical Summary & Engineering Insights
| Performance Factor | Haikuo FRP Kick Plates | Steel Kick Plates | Aluminum Kick Plates |
|---|---|---|---|
| Corrosion Resistance | Total immunity | Rusts, needs repainting | Resists rust, can corrode/pit |
| Electrical Conductivity | None — safe near live equipment | Conductive | Conductive |
| Weight | Lighter, easier installation | Heavy | Light |
| Chemical Resistance | Excellent | Poor without coating | Moderate |
| Maintenance | Minimal | Regular repainting | Low |
Targeted Product FAQ
Q1: What profile shapes are available — M-shaped, W-shaped, or flat?
A1: We offer custom M-shaped and W-shaped profiles as well as flat kick plate stock — let us know your handrail system’s specification and we’ll confirm the matching profile.
Q2: Are FRP kick plates OSHA/safety-code compliant?
A2: Our kick plates are designed to meet standard industrial safety requirements for fall/debris protection at platform edges — share your specific code requirement (e.g. OSHA height/gap specs) and we can confirm compliance.
Q3: What environments are FRP kick plates best suited for?
A3: Chemical plants, offshore rigs, power substations, and any facility where corrosion resistance and electrical non-conductivity are safety priorities.
Q4: Can kick plates be cut to fit custom platform layouts on-site?
A4: Yes, they can be cut with standard tools to fit irregular platform edges and corners.
Q5: Do you supply matching brackets or fixing hardware?
A5: We can advise on compatible mounting hardware for your specific handrail/toeboard system — let us know your setup and we’ll confirm what’s needed.
Production Process
Pultrusion Profile Equipment
Fiberglass placed on a shelf
Profile mold debugging
Profile cutting
Profile punching
Profile cutting details control
Profile inspection
Profile packaging
