Precision Continuous FRP Plastic Manufacturing Production Line

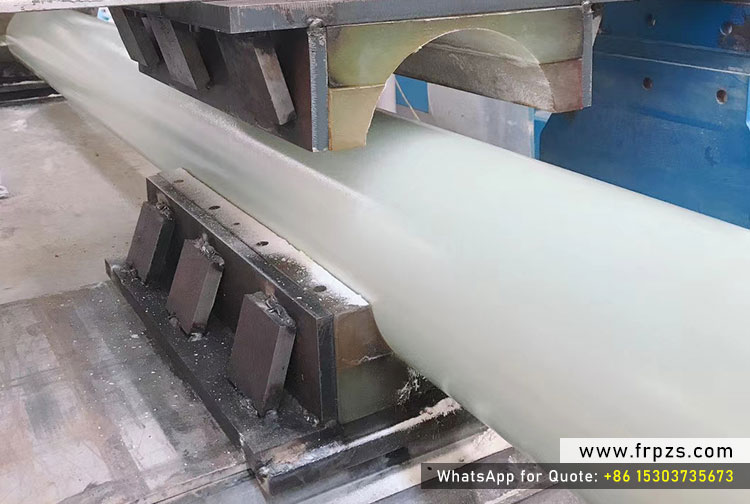

Haikuo’s fibreglass reinforced plastic — known across global procurement circles as FRP plastic or fiber reinforced plastic — sits at the center of how industrial material science and structural engineering have evolved. Made on our high-speed automated continuous thermal pultrusion lines, this reinforced plastic combines high-density continuous E-glass fiber rovings and multidirectional fabrics with advanced thermosetting polymer matrices. That chemical bonding produces structural profiles with outstanding longitudinal tensile strength and cross-sectional stability built to handle extreme mechanical loads.
In aggressive chemical containment basins, cold municipal wastewater corridors, offshore marine decking, and high-voltage power utility grids, traditional materials like carbon steel, stainless steel, and timber tend to fail early — rust scaling, chemical stress cracking, sudden brittle fracture. Haikuo’s structural polymer composites remove these failure modes entirely. Lightweight, fully non-conductive, and immune to moisture and aggressive chemical vapors, our fiber reinforced plastic cuts maintenance budgets sharply while holding up reliably over decades in the field.
Key Material Advantages of Haikuo FRP Plastic Solutions
- Strong Tensile-to-Weight Ratio: matches carbon steel’s longitudinal yield strength while cutting total dead weight by up to 75%, easing manual handling and cutting transport costs.
- Full Acid, Caustic, and Saltwater Resistance: inert to aggressive chemical splashes, road deicing brines, soil acids, and harsh industrial atmospheres, eliminating rust scaling and structural thinning entirely.
- Strong Dielectric and Insulation Properties: naturally non-conductive with a high breakdown voltage threshold and strong volume resistivity, preventing hazardous electrical tracking near substation equipment.
- Solid Flexural Elasticity and Fatigue Resistance: engineered with balanced mechanical shear moduli, letting profiles absorb repeated mechanical impacts and bend smoothly without micro-cracking or splitting lengthwise.
- Strong UV and Weathering Resistance: built with commercial-grade UV inhibitors and a synthetic surfacing veil, preventing fiber blooming, color fading, and cracking under prolonged outdoor sun exposure.
Material Properties & Mechanical Performance Specifications
The table below lays out the standard physical, mechanical, and thermal parameters of our pultruded structural profiles. Our factory supports full customization of wall thickness, cross-sectional shape, resin system (isophthalic polyester, vinyl ester, or polyurethane matrix), and flame-retardant class to match your layout drawings.
| Mechanical Performance Parameter | Standard Testing Method | Polyester Base Matrix | Vinyl Ester Base Matrix | Polyurethane Base Matrix |
|---|---|---|---|---|
| Longitudinal Tensile Strength | ASTM D638 | ≥ 300 MPa | ≥ 350 MPa | ≥ 650 MPa |
| Flexural Modulus of Elasticity | ASTM D790 | ≥ 23 GPa | ≥ 25 GPa | ≥ 38 GPa |
| Dielectric Strength (Short Time) | ASTM D149 | ≥ 12 KV/mm | ≥ 15 KV/mm | ≥ 15 KV/mm |
| Flame Retardant Performance | UL 94 / ASTM E84 | UL94 V-0 Options | Class A Extinguishing | Custom Tailored V-0 |
Cross-Industry Infrastructure Scenarios & Product Deployments
Thanks to their durability, geometric accuracy, and chemical-dielectric properties, Haikuo reinforced plastic components see use across high-demand sectors worldwide:
- Chemical & Waste Treatment Infrastructure: main safety walkways, industrial grating support lines, chemical pickling tank frames, and walkway structural framework beams.
- Power Utility & Telecommunications Engineering: high-voltage electrical insulating dowels, antenna mast shrouds, transformer air duct spacer blocks, switchgear isolation grids, and fiber optic cable strength members.
- Civil Construction & Building Frameworks: corrosion-proof concrete pavement expansion dowels, cooling tower framing columns, non-conductive tunneling anchors, and architectural skeleton channels.
- Agricultural & Commercial Tooling: flexible tree stake backbones, greenhouse hoop frames, tool handles, tent poles, and high-visibility driveway snow plow markers.
Quality Assurance and Material Verification
Every pultruded and molded run of Haikuo composite material is produced under strict ISO 9001 protocols. Our lab runs continuous ASTM mechanical verification testing — longitudinal tensile pull analysis, barcol hardness mapping, fiber volume fraction optimization, and high-salinity corrosion chamber weathering simulation — ensuring every delivery arrives ready for immediate, zero-maintenance heavy-duty deployment.
Technical Summary & Engineering Data
Haikuo’s fibreglass reinforced plastic — also known globally as FRP plastic or fiber reinforced plastic — represents high-performance material engineered to replace conventional steel, stainless steel, and timber across heavy industrial infrastructure. Made via automated continuous thermal pultrusion that bonds high-density E-glass fiber rovings and multidirectional fabrics with advanced thermosetting polymer matrices, this reinforced plastic delivers steel-equivalent longitudinal tensile strength while cutting total installation dead weight by up to 75%. Built with chemically inert resins (isophthalic polyester, vinyl ester, or polyurethane) and UV inhibitors, our structural polymer composites resist aggressive chemical splashes, road deicing brines, humidity, and acidic vapors fully, without needing sandblasting or painting. Available in custom profiles and variable lamination wall thicknesses, these zero-maintenance pultruded structural configurations serve as a standard choice for modern smart grids, corrosive chemical containment, marine decking, and green building framing systems worldwide.
| Global Industrial Material Matrix | Haikuo FRP Plastic Composites | Structural Stainless Steel (316) | Structural Carbon Steel (A36) |
|---|---|---|---|
| Chemical, Acid & Saltwater Barrier | 100% Inert (Zero degradation/rust scaling) | Moderate (Suffers localized pitting/cracking) | Extremely Poor (Rapid oxidation thin-out) |
| Tensile Strength-to-Weight Ratio | Elite (~25% dead weight of steel) | Moderate | Low-Moderate |
| Electrical Dielectric Insulation | Excellent Volume Resistivity (Non-conductive) | Highly Conductive (Severe flashover hazard) | Highly Conductive (Severe flashover hazard) |
| Thermal Conductivity (W/m·K) | ~ 0.3 (Absolute barrier, no bridge) | ~ 16 (High thermal bridging hazard) | ~ 50 (Severe energy loss bridge) |
| 30-Year Infrastructure Lifecycle Cost | Absolute Zero Maintenance (Highest ROI) | High (Massive initial material premium) | Extremely High (Continuous welding & painting) |
Engineering Q&A
Q1: What mechanical design factors give fibreglass reinforced plastic steel-equivalent structural performance?
A1: It comes down to fiber orientation and dense matrix consolidation. Haikuo fibreglass reinforced plastic structures pull thousands of high-density E-glass fiber rovings continuously into a solid cross-section. That configuration maximizes longitudinal tensile strength (up to 650 MPa with polyurethane base resins), letting the material manage heavy mechanical loads while cutting total dead weight by roughly 75% — letting civil engineering teams replace carbon steel rods across complex structural systems cataloged in our wholesale pultruded fiberglass profiles portfolio.
Q2: Why does thermosetting resin matrix selection determine frp plastic’s final chemical and thermal lifespan?
A2: Unlike basic commercial plastics or standard PVC, which melt under low heat or degrade with organic solvents, our frp plastic components use highly cross-linked thermosetting polymer matrices. Once cured inside our continuous thermal dies, this molecular structure locks in permanently. Choosing isophthalic polyester for general weatherproofing, vinyl ester for corrosive chemical containment basins, or epoxy for top-tier electromechanical insulation ensures the structural shapes never warp, melt, or dissolve, even over centuries of field deployment.
Q3: How do fiber reinforced plastic profiles withstand continuous high-frequency dynamic loading and environmental fatigue?
A3: Metals suffer microscopic crystal fatigue that ends in sudden brittle snaps, and timber splits along the grain under cyclic vibration. Haikuo fiber reinforced plastic products alternate unidirectional glass rovings with dense multidirectional mat fabrics, optimizing the cross-sectional mechanical shear moduli. Deployed as heavy-duty industrial grating support lines or motor stator slot wedges, our profiles absorb millions of dynamic kinetic shocks elastically, snapping back flat with zero micro-cracking.
Q4: What field fabrication practices let crews cut or drill reinforced plastic shapes safely without edge fraying?
A4: Low-grade composite components delaminate because of poor fiber wet-out inside the resin bath. Our reinforced plastic profiles avoid this thanks to superior continuous consolidation. For field cutting and drilling, installation crews can use standard portable masonry circular saws, carbide-tipped drills, or diamond-coated wheels. We recommend high cutting velocities and low feed pressures for flush, precisely calibrated mechanical joints with zero edge delamination.
Q5: Can your production facility supply bulk wholesale custom profiles and tailor-made properties based on our drawings?
A5: Yes — Haikuo is a direct-to-factory industrial composite manufacturer running multiple high-capacity molding and pultrusion lines. We wholesale an extensive standard catalog of round, square, and rectangular tubes, plus safety step grating sections, and maintain a fully equipped in-house tooling workshop to calibrate hard chrome-plated precision pultrusion dies. That lets us adjust structural wall thicknesses, engineer custom glass orientations for specific hoop strengths, and add specialized fire retardants (UL94 V-0 compliance). Contact our industrial procurement office to align your architectural layouts with our stock of heavy-duty components and pultruded fiberglass profiles.
